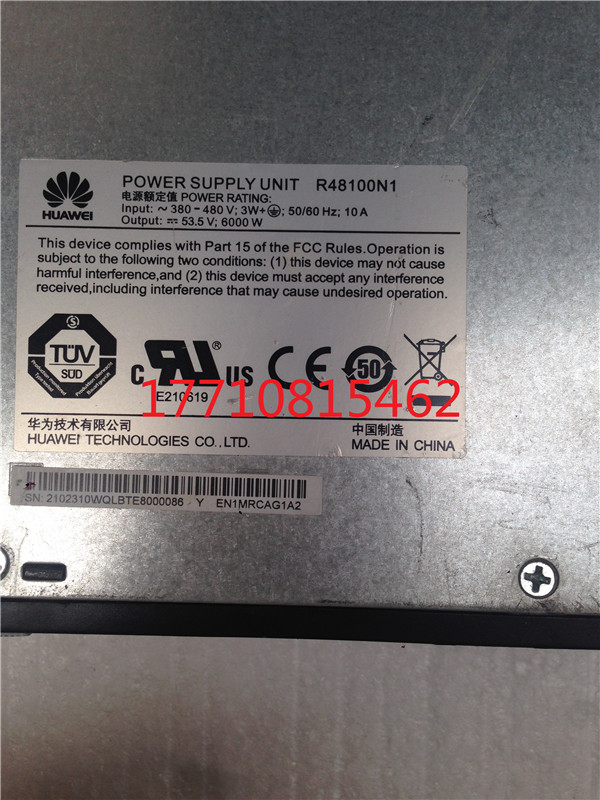

华为R48100G1,R48100N1大功率模块，开关电源，通信电源

华为R48100G1,R48100N1大功率模块，开关电源模块，通信电源模块高频开关电源模块。

品牌/型号：华为/R48100G1品牌：华为型号：R48100G1

类型：AC/DC电源调制方式：其他输入电压：260～530（V）V输出功率：

6000（W）W输出电压：42～58（V）V工作效率：96（%）%输出电压精度：0（%）%电压调整率：

0（%）%负载调整率：0（%）%产品认证：CE输出电流：100AA

华为6000W大功率开关电源 通信高频整流器 型号：R48100G1

产品简介：R48100G1是一款最大输出功率为6000W的数字化三相整流模块，

实现260VAC～530VAC输入，53.5VDC额定输出的转换，输出电压可通过监控模块调节。

具有软启动、完善的输入和输出保护、低噪声、可并联等优点。采用最新电源监控技术，

实现对整流模块及负载的实时监控，实现输出电压通过后台调节功能。

电气特性    特性描述     输入特性

工作电压：260VAC～530VAC

输入频率：45～66Hz

额定值为：50Hz/60Hz

最大输入电流：≤13A

功率因数：≥ 0.99

THD：≤ 5%

输出特性

输出电压：42V DC～58V DC

额定值为：53.5V DC

输出功率：6000W（304VAC～530VAC）

其他特性

尺寸：43mm（高）×238mm（宽）×378mm（深）

重量：<6kg

散热模式：强制风冷（风扇具有温控调速功能）

环境指标

工作温度：-40℃～+75℃（45℃以上输出降额）

存储温度：-40℃～+75℃

相对湿度：5%～95%（无凝露）

海拔变化：≤4000m（2000～4000m时高温降额，每升高120m降低1℃）

保护特性

输入过压保护 过压保护点：>530VAC，< 550VAC

输入欠压保护 欠压保护点：<260VAC

输出过压保护：58.5VDC～60.5VDC（可通过监控设置）

输出短路保护：可长期短路，短路消失后可自动恢复

输出限流保护

过温保护：过温保护点：75℃

可靠性指标 MTBF 45万小时

噪声 指标 ≤45dB

安规/EMC/防雷特性

安规认证

通过TUV、CE、UL认证

获得CB证书

符合UL60950-1

IEC60950-1

CAN/CSAC22.2 No. 60950 -1

EN60950-1

EMC

EN55022 Class B

EN55024

EN61000-3-2

EN61000-3-3

ETSI EN300 386

ENSIEN301489

ITU-T K.20

防雷：5KA

该产品优势：

 高效：>96%

输入电压范围：260VAC～530VAC

工作温度范围：-40℃～+75℃（45℃以上输出降额）

总谐波失真（THD）：≤5%

支持热插拔功能

全数字化控制

支持智能电表

支持CAN总线通讯功能

支持电压电流调整功能

支持LED显示告警

通过TUV、CE、UL认证，获得CB证书
