华为PSC500-A电源模块,华为开关电源，华为UPS
产品说明

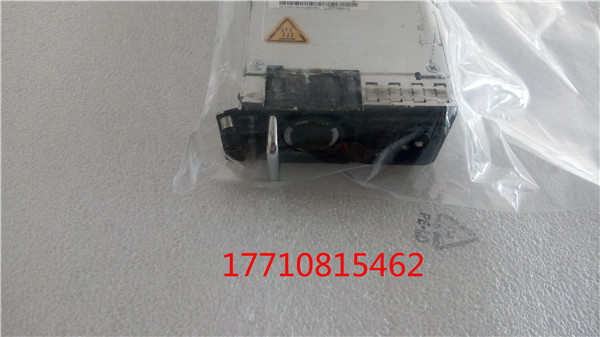

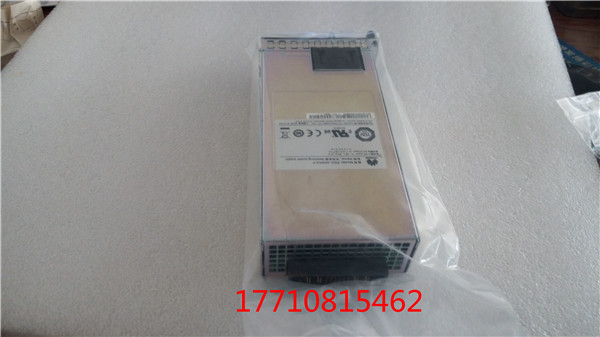

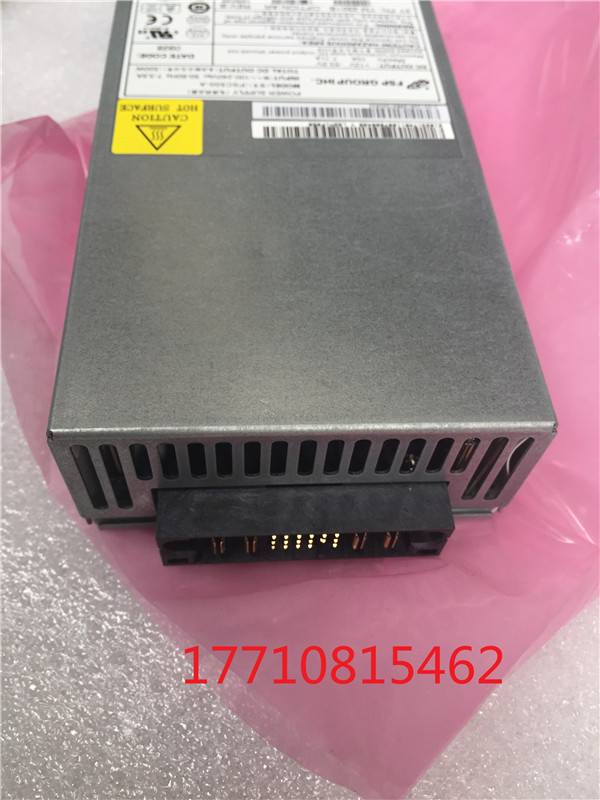

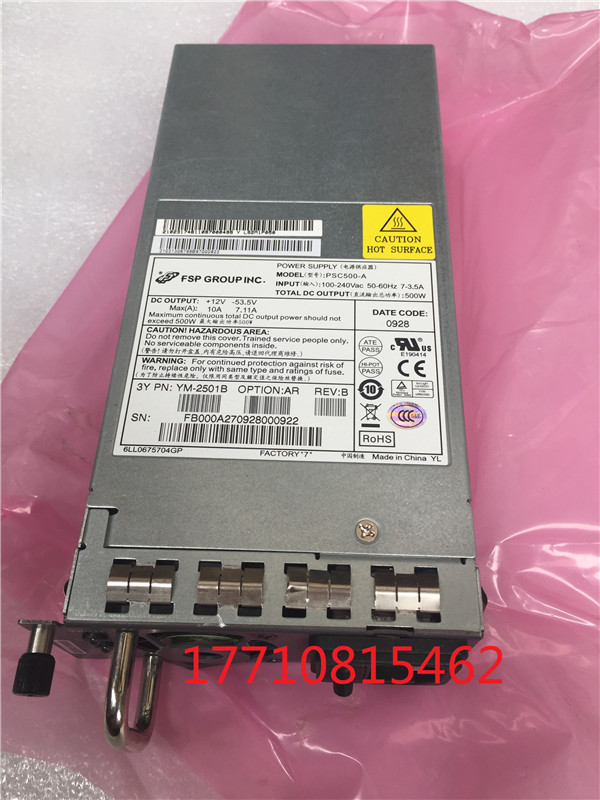

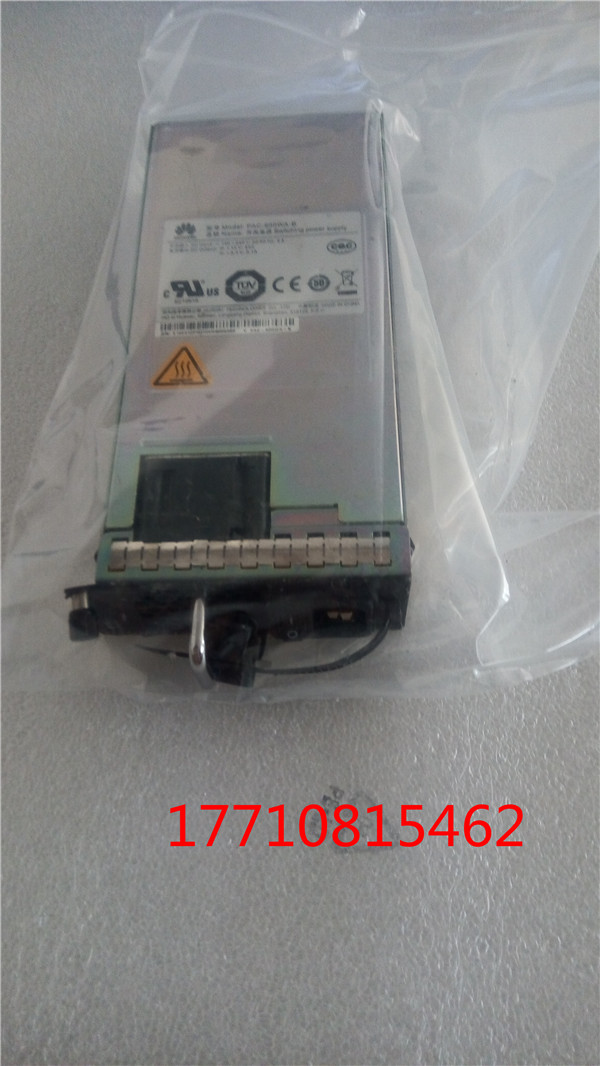

华为PSC500-A电源模块，通信电源模块，华为PSC500-A开关电源模块 华为PSC500-A电源模块，通信电源模块，华为PSC500-A开关电源模块 华为AC/DC电源 通信电源 500W双路隔离输出 PSC500-A 产品详情
品牌/型号：华为/PSC500-A 类型：AC/DC电源晶体管连接方式：单端式输入电压：90~264（V）输出功率：500（W）输出电压：-53.5V 和12V（V）工作效率：85（%）输出纹波噪音：500mv 200mv输出电压精度：0（%）电压调整率：0（%）负载调整率：0（%）产品认证：CE 华为AC/DC电源 通信电源 500W双路隔离输出 PSC500-A PSC500-A电源规格说明书

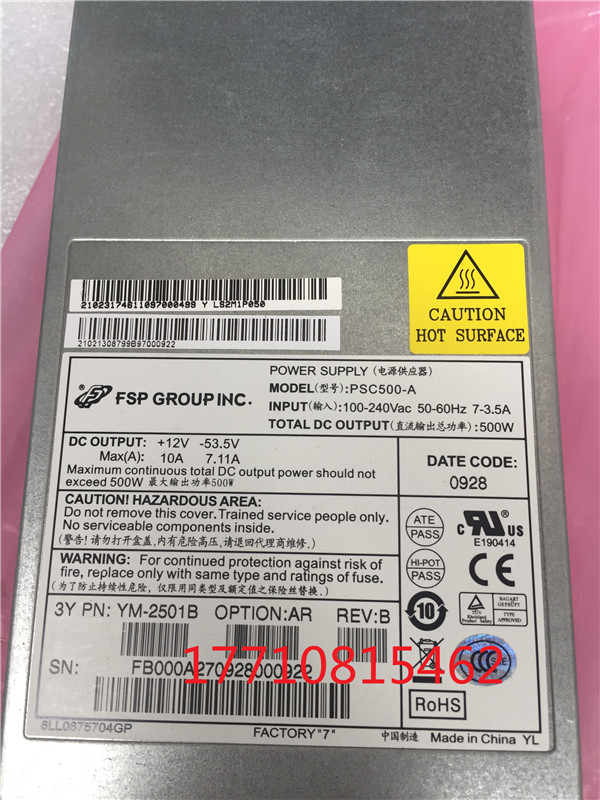

PSC500-A是一款AC/DC带外壳电源，90Vac～264Vac输入，-53.5V和12V双路隔离输出,该电源具有输入过流保护、输出短路保护，输出过流保护，输出过压保护，过温保护功能，安规满足TUV+CE+UL认证要求，EMC满足Class B的要求。 工作环境 工作温度：-25 ～ +55 oC 海拔：0 ～ 3000 m 散热形式：自带风扇前后风道散热 基本电性能 输入电压：90 ～ 264VAC ；47 ～ 63Hz 交流输入制式：单相三线制输入 输出电压：-53.5V和12V双路隔离输出 输出功率：1)-53.5V输出功率 380W 2)12 V输出功率 120W 输出效率：>85% 220Vac&50%~100%max load 纹波噪声：1)-53.5V纹波噪声 500 mV 2)12 V纹波噪声 200mV 温度系数：±0.02%/℃ 容性负载：1)-53.5V容性负载 3000 uF
2)12 V容性负载 5000 uF 保护功能： 输入保护：过流保护 输出保护：过压、过流、短路保护。 过温保护：有 通信监控 通信：I2C通信 告警：不涉及 监控：在位(Present)、PSKILL信号和PG信号 安规 安规证书：TUV+CE+UL EMC EMC等级：ClassB 防雷：4KV/2KV(共模/差模)
结构： 外形尺寸：195.4mm(D)×90mm(W)×39.8mm(H) 指示灯：电源输入指示灯（双色灯） 电源输出指示灯（双色灯） 输入端子：SC04 输出端子：FCI 放置方式：水平 面板要求：面板喷涂颜色为NC紫灰， 丝印字体是Arial，颜色是 Pantone Cool Gray 3C 外壳材料：铝制 热插拔：支持 可靠性： 寿命：环境温度为40℃时，电源使用寿命可达10年(含电解电容)。 MTBF:250000小时 VB2plus-12/T630A-25kA VB2plus -12/T630A-31.5kA VB2plus -12/T1250A-25kA VB2plus -12/T1250A-31.5KkA VB2plus -12/T1250A-40kA VB2plus -12/T1600A-40kA VB2plus -12/T2000A-40kA VB2plus -12/T2500A-40kA VB2plus -12/T3150A-40kA VB2plus -12/4000A-40kA VB-40.5高压真空断路器 VB-40.5/T1250A-31.5kA
