公司目前自研的电源产品主要种类如下（含在研产品），且在不断地丰富当中，将重点介绍TP48300B/TP48600B两款产品。

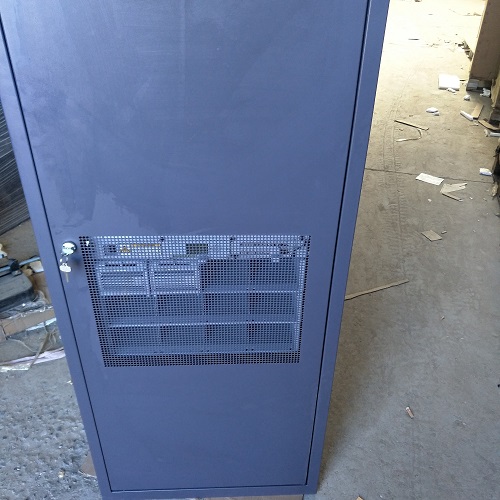

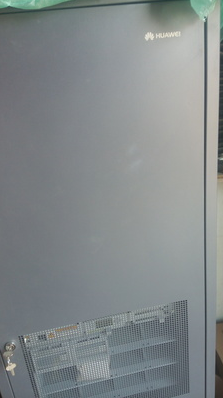

尺寸“600 400 1600”长 宽 高

TP48300B/TP48600B电源系统是AC/DC室内电源系统，单机采用48V/30A或48V/50A整流模块，能够为-48V系列的通信设备提供稳定可靠的直流电源。

TP48300B/TP48600B电源系统解决方案基于站点的节能减排需求，符合现在倡导的绿色能源发展趋势，支持模块休眠和远端监控功能功能，减少基站能源建设总的投资成本，有效地减少站点巡检次数，降低运维

TP48300B/ TP48600B电源系统通过调整安装的整流模块数量可灵活应用于室内基站、室内中心机房等场景。电源系统安装方式为落地安装于机房内，支持靠墙（离墙壁距离≥100mm）。

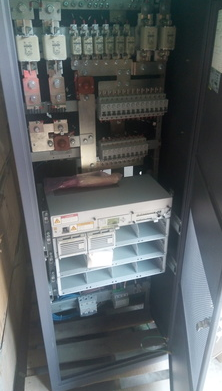

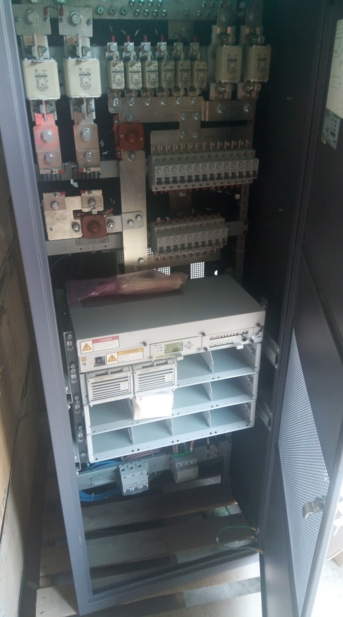

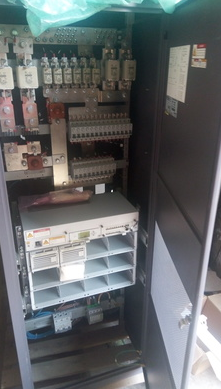

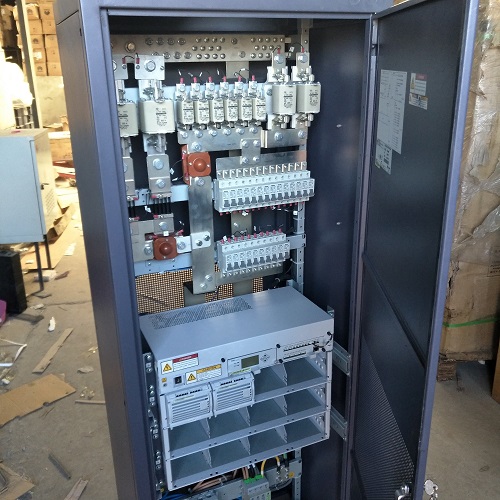

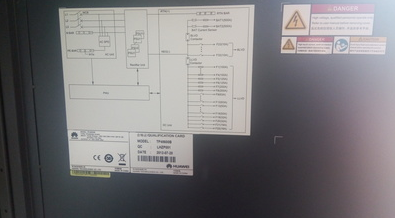

电源系统都是由直流配电、交流配电、监控模块和整流模块4部分组成

最重要的对外接口就是直流输出配电

对于标准化机柜，上进线上出线方式应用场景最多

交流配电部分主要由空开和防雷两部分组成。

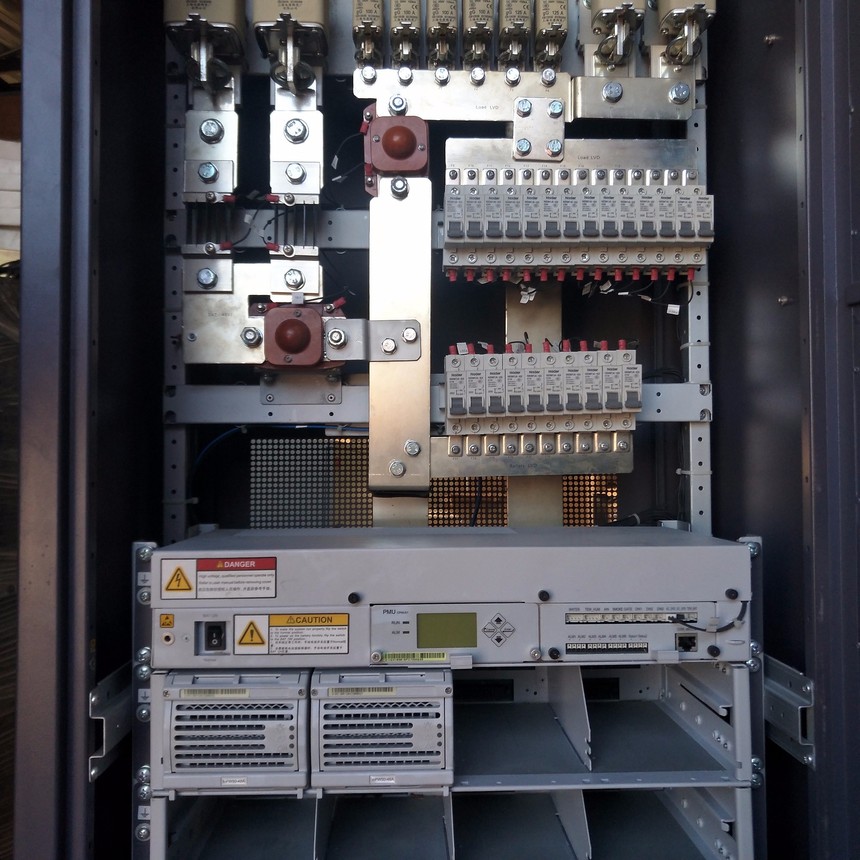

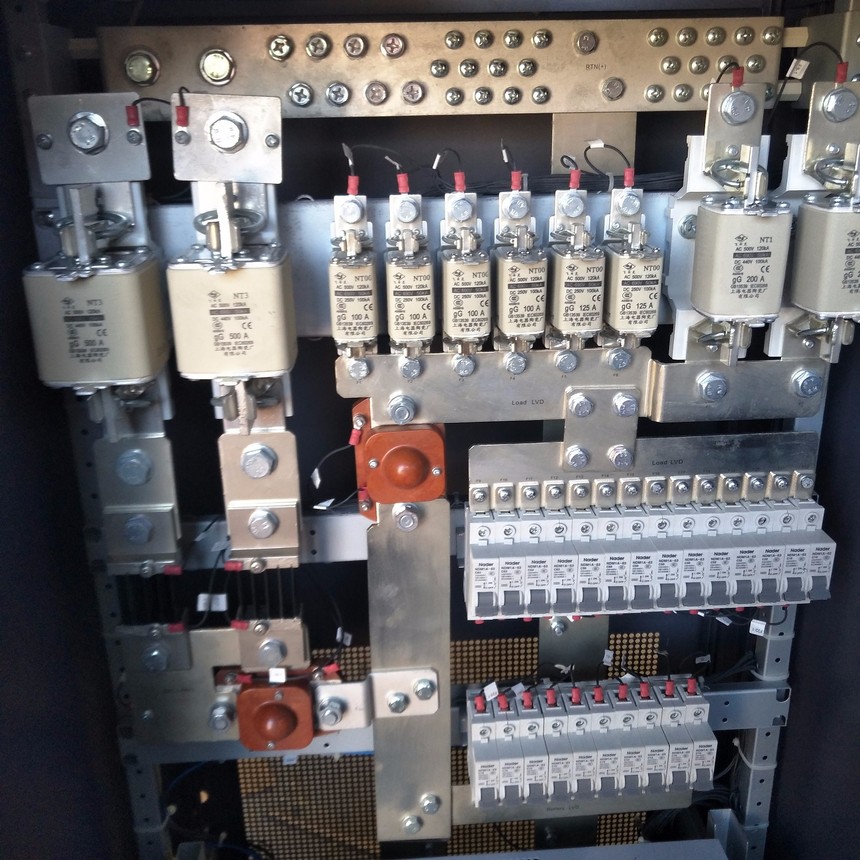

直流配电部分主要由空开、熔丝和直流防雷器三部分组成。

主要功能

直流输出管理：输出电压管理，负载均流，休眠功能

蓄电池管理：均、浮充管理，限流调压，温度补偿，电池测试，负载上下电管理

告警管理：识别并存储告警，通过干接点或通讯方式上报

环境监控：环境温湿度，蓄电池温度

远程监控：干接点，RS232/RS485，SNMP

监控模块可以通过实现本地操作、后台网管等方式实现环境监控、异常告警、电池管理、整流模块及配电管理等功能。

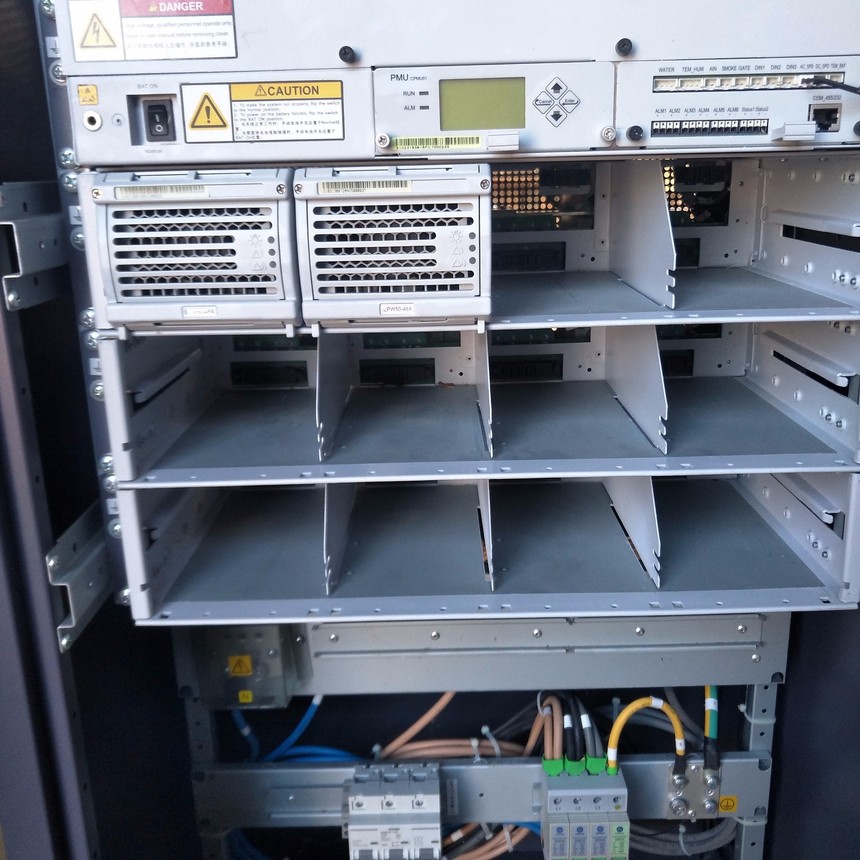

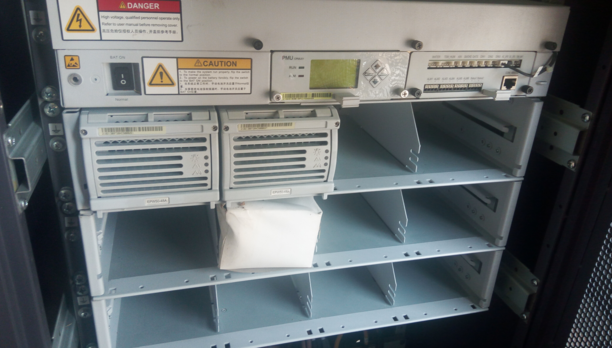

硬件架构——整流模块

整流模块（PSU）将输入的AC转换成稳定的-48V DC，华为常用的整流模块规格有30A、50A和100A。

电源模块散热方式均为强迫风冷，前进风、后出风。

电源模块支持热插拔，前维护。

当前业界整流模块的效率在90-94%之间，Eltek推出了96%的高效率电源模块。

LLVD低压保护电路工作原理

防止电池深度放电

电池的过度放电会导致电池的永久损坏。如2V电池的电压如放电下降到1.8V之后电池会永久损坏。

 延长传输设备使用时间

考虑到部分负载在网络中处于关键位置，可采取分二次低压隔离切换。例如选择电池电压在46.5V时先关断一般性负载分路，到电池电压继降到44V时再关断其余重要负载分路。

系统设置的BLVD电压值默认为43.2V，LLVD电压值默认为44V。

寿命>50万小时

支持远程管理与升级

30A/50A模块混插，保护投资

全数字控制

485通用协议

远程检测和控制功能

“静音”式设计

最高效率96％

20％～80％，效率>96%

待机功耗<4W

智能休眠

提升工作模块的负载率，均衡模块工作时间

模块的效率与负载率有关，负载率越低效率越低

降低能耗

延长模块寿命

了解TP48300B/TP48600B产品的功能及架构

了解TP48300B/TP48600B的工作原理

熟悉TP48300B/TP48600B产品的技术特点

HUAWEI TP48600B indoor integrated cabinet, 48vK switching power supply, high frequency switching power supply, communication power supply

HUAWEI TP48600B indoor integrated cabinet, 48vK switching power supply, high frequency switching power supply, communication power supply

HUAWEI TP48600B indoor integrated cabinet, 48vK switching power supply, high frequency switching power supply, communication power supply

The main types of the company's current power products are as follows (including research products), and in the continuous enrichment, we will focus on the two products of TP48300B/TP48600B.


Size "6004001600" length and width

The TP48300B/TP48600B power supply system is the AC/DC indoor power supply system. The single machine uses 48V/30A or 48V/50A rectifier modules to provide a stable and reliable DC power supply for the communication equipment of the -48V series.

The solution of TP48300B/TP48600B power system is based on the energy saving and emission reduction demand of the site, which is in line with the green energy development trend advocated now, supports module dormancy and remote monitoring function, reduces the total investment cost of the base station energy construction, effectively reduces the number of site inspection and reduces operation and maintenance.


Cabinet type

/A

Mini power

A

Floor mounted indoor power

B

Floor mounted indoor power

H

Wall mounted indoor power

D

Large DC power product


The TP48300B/ TP48600B power system can be flexibly applied to indoor base stations, indoor computer rooms and other scenes by adjusting the number of rectifier modules installed. The installation of power system is installed in the engine room on the ground floor, supporting the wall (away from the wall to be more than 100mm).


Parameters

TP48300B

TP48600B

working temperature

-33 C ~ + 60 C

-33 C ~ + 60 C

input voltage

90V AC to 290V AC, the default is 220V AC

90V AC to 290V AC, the default is 220V AC

AC input

1 road 63A/3P (the design is reserved for two ways to input space, manual switching; power module control open: 32A x 5 road, reserved space, such as the customer needs, can be processed by non - Standard)

1 road 100A/3P (the design is compatible with two input, manual switching); the power module controls open 32A x 12 (only reserved space, if the customer needs, can pass through non - standard processing)

AC input lightning protection

C lightning protection

C lightning protection

output voltage

44V DC to 58V DC with a nominal value of 53.5V

44V DC to 58V DC with a nominal value of 53.5V

DC output lightning protection

Differential mode 10kA, common mode 15kA (selection)

Differential mode 10kA, common mode 15kA (selection)

Battery fuse

2 Road 160A

2 Road 500A

Primary branch

3 100A fuse, reserve 2 100A fuse and 7 63A and open space below.

3 road 160A fuse, 2 100A fuse, 2 63A open, 3 32A open, 2 10A open.

Two sub electric branch

2 32A open, 2 10A open, reserve 2 open

2 63A open, 2 32A open, 2 10A open

System full capacity

300A (50A rectifier module)

600A (50A rectifier module)

Shape size

600 x 440 x 1600mm

600 x 400 x 1600mm


project

Set range

Default value

Number of batteries / Battery String

0~2

One

1/ Battery Cap1 battery capacity

30~1000

400Ah

2/ Battery Cap2 battery capacity

30~1000

0Ah

Date / Date

0000-00-00~9999-12-31

Thirty-six thousand eight hundred and ninety-two

Time / Time

00:00~23:59

Zero

Electric voltage / LLVD under load

Voltage to DC undervoltage warning point under battery

44.0V

The electric voltage /BLVD under the battery

Electric voltage /35V~LLVD under 35V~ load

43.0V

Battery float / Battery Float

43.20V~57.6V

53.5V

Battery equalizer / Battery Boost

43.20V~57.6V

56.5V

Module dormancy permissible / Rect Sleep

Yes / no

no

Power allowable / LLVD Enable under load

Yes / no

yes

Battery power permissible / BLVD Enable

Yes / no

yes

Charge current limiting coefficient / Current Limit Coefficient

0.05~0.25

Zero point one

Battery temperature alarm upper limit / Battery High Temp Alarm

-50~100 C

50 degrees centigrade

Environmental high temperature alarm point / Environment High Alarm

-50~100 C

50 degrees centigrade


The power supply system consists of 4 parts: DC distribution, AC power distribution, monitoring module and rectifier module.

The most important external interface is DC output power distribution

For standardized cabinets, the application scenario of the upper line outlet is the most.


Serial number

Name

One

Electric branch fuse (LLVD fuse) under load

Two

Battery protection branch open (BLVD MCB)

Three

Transfer copper

Four

Monitoring module (PMU)

Five

Rectifying module (PSU)

Six

N wiring line

Seven

Total ground row of cabinet

Eight

Exchange input open

Nine

Battery fuse

Ten

DC output positive busbar

Eleven

Monitor backplane (located below the cover plate in the picture)

Twelve

AC lightning arrester

Thirteen

Manual battery electric switch (BLVD switch)

Fourteen

Manual load electric switch (LLVD switch)

Fifteen

Electric branch open (LLVD MCB) under load


The AC distribution part is mainly composed of two parts: open and lightning protection.

The DC distribution part consists of three parts: open circuit, fuse and DC lightning arrester.


major function

DC output management: output voltage management, load sharing, sleep function

Battery management: all, floating charge management, current limiting and voltage regulating, temperature compensation, battery testing, load up and down management.

Alarm management: identifying and storing alerts, reporting through dry contact or communication.

Environmental monitoring: ambient temperature, humidity, storage battery temperature

Remote monitoring: dry contact, RS232/RS485, SNMP


The monitoring module can realize the functions of environmental monitoring, abnormal alarm, battery management, rectifier module and distribution management through local operation and backstage network management.

Indicator ID

Normal state

Abnormal state

Abnormal cause

Monitor the running light RUN (green)

Bright

-

Communication interruption with the main device

-

Constant death

Monitoring module fault

-

Slow twinkle

Monitoring module is normal

Fault indicator ALM (red
