Introduction to the A63B Cabinet A63B机柜介绍

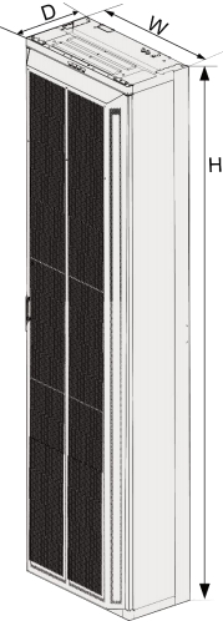

The A63B cabinets comply with the ETSI standard. A63B机柜符合ETSI标准。 Cabinet Type机柜型号Available HeightInside the Cabinet机柜内部空间Dimensions (W × D × H)尺寸（Wx D x H）A63B85SU600mmx300mmx2200mm23.6inchx11.8inchx86.6inch |
|
  515mm
25mm |

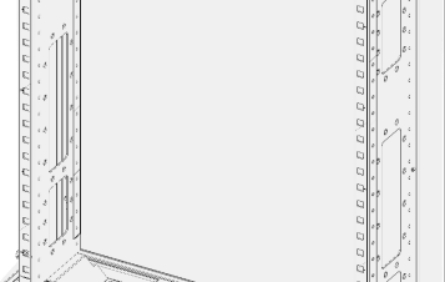

Width of the internal opening between mounting bars: 500 mm Vertical distance between two mounting holes for mounting ears: 25 mm Horizontal distance between two mounting holes for mounting ears: 515 mm Distance between the cabinet column and the front door: 186.5 mm Distance between the cabinet column and the rear door: 153.5 mm 机柜方孔条内部开档宽度：500mm； 立柱纵向两个挂耳安装孔中心距离：25 mm； 立柱横向两个挂耳安装孔中心距离：515 mm； 机柜立柱到机柜前门的距离：196.5 mm； 机柜立柱到机柜后门的距离：153.5 mm。 |
