华为ETP48100-B1

华为ETP48100-B1（交流转直流配电系统）

华为ETP48100-A1/ETP48100-B1系统参数和安装使用

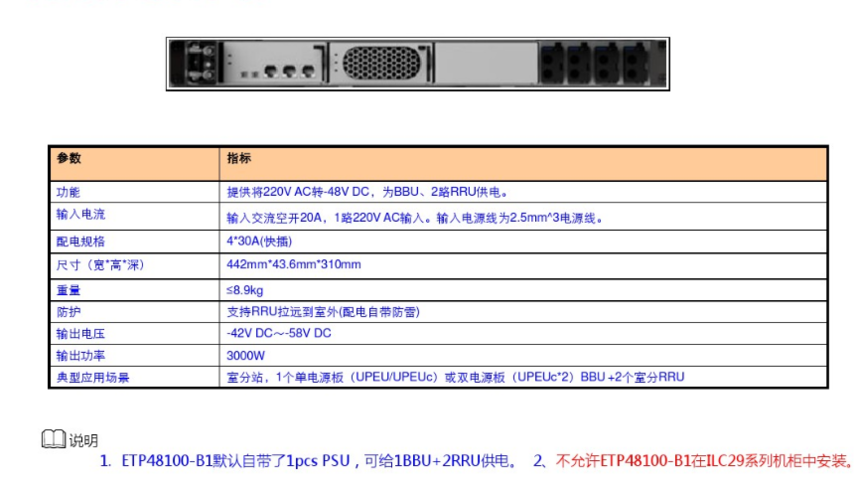

华为ETP48100交流转直流配电盒参数

功能： 提供将220V AC 转-48V DC，为BBU、2路RRU供电。

输入电流：输入交流空开20A，1路220V AC输入，输入电源线为25mm2电源线。

配电规格：4*30A（快插）

输出电压：-42V DC~-58V DC

输出功率：3000W

应用场景：

室分站，1个单电源板或双电源板（UPEU）BBU+2个室分RRU

产品详情

1.输出-48V50A(最大100A）,同EPS30-4815AF

2.输出4路30A（A1只有2路）

3.标准19英寸，厚度1U，适用深600MM的机柜

4.适用于 华为 中兴 烽火 等OLT 交换机 路由器 无线等大型机房 供电系统，

5.ETP48100-B1_华为ETP48100-B1

      类型：通信电源

      调制方式：脉冲调频调宽式

      晶体管连接方式：全桥式

      输入电压：100~240（V）

      输出功率：4800（W）

      输出电压：48（V）

      工作效率：98（%）

      输出纹波噪音：65MV

      输出电压精度

      电压调整率

      负载调整率

      产品认证：iso9001

      输出电流：100A（A）

华为ETP48100，华为ETP48100-B1，华为通信电源，华为开关电源，华为嵌入式电源

华为ETP48100-B1

华为ETP48100按装DCDU/ETP48100电源输入线

a) 直流：裁剪16mm2蓝黑电源线并压接端子，连接至DCDU与电源柜

b) 交流：将交流输入电源线两端分别连接至ETP48100与AC220V电源插排，多余线缆盘绕绑扎在机框旁边

线缆布放时须用绝缘胶带缠绕端头，使之绝缘，电源柜侧接电时，须使用经过绝缘处理的工具，接电前需确认空开关闭或拔出熔丝

电源线和信号线需间隔30mm固定，室内用白色线扣十字交叉绑扎，齐根剪平不拉尖，室外用黑色线扣，留3-5mm后剪掉.
