Internet数据中心(简称IDC)、企业自用数据中心和数据备份中心是现在移动互联时代各个相关行业最主要组成部分和设施，用户的各种重要信息，企业的信息等等都存储在这些地方内。更需要注意的，由于现在大数据和云存储正流行，其内在的信息更加重要，如果相关数据中心因为对断电而宕机，其造成的损失是不可估量的。

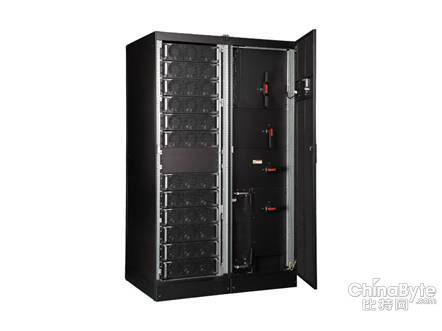

　　因此，针对数据中心的数据安全，保证其电力供应的持续性，稳定性并可以高效，绿色的利用能源，将最必要和需要重点考虑的。为此全球领先的信息与通信解决方案供应商华为，秉承20余年电源应用经验，拿出了诚意之作------ UPS5000-E全模块化不间断电源产品。UPS5000-E是华为重点推出的全模块化设计的产品，模块支持热拔插，可在线扩容、维护，靠墙安装，正面维护，大大节省运维时间，降低人工维护成本，在线模式下其效率高达96%，节能实力业界领先，广泛使用于中小型数据中心、大型购物中心、安全系统等中大型用电场景。

　　华为UPS5000-E 可靠

　　华为UPS5000-E的模块式设计理念全面优化了“N+X”冗余方案，就是说用户在一个系统中安装了必能支持最大系统负载所需要的最少模块还多X个模块，那么就能够在X个模块出现故障的情况下，仍能保证系统的正常运行。这比起传统UPS的“1+1”和“N+1”容错率只有一次来说，安全性更高了。

　　UPS5000-E模块化UPS所有模块均可热拔插，故障时可在线更换故障模块，将MTTR控制在5min内。将UPS的可用性推向极致。传统UPS发生故障后，修复时间长，而且很困难，出现故障需要有受过专门培训的维护技术人员凭经验对故障原因的查找和分析后，以确定故障引发点和受损部位，制定维修方案，调取备件、更换维修，修复后调试、试运行，交付用户。在上述环节中，若有一个环节出现判断失误，维修过程就要延长。

　　除了上述主要特点，华为UPS5000-E在智能，过载方面也有出色表现:

　　5KA防雷设计和6KVA防浪涌设计，有效降低雷击失效率,按照机房高标准设计，业界最高。风扇容错能力强，一路风扇损坏可带50%负载，两路风扇损坏可带30%负载。

　　华为UPS5000-E 高效

　　据介绍，华为UPS系统本身，首先是纯净化的能源，不会为电网带来杂讯，即在输入端对电网而言是“0”污染的设备;其次，在输出端，华为UPS“送出去”的交流电，不会对负载产生干扰;第三，华为UPS本身不会消耗太多的电能，系统转换效率高达96%。这意味着在200kVA负载下，相对传统92%的效率，华为UPS每年会节省79000度电。

　　能够达到如此的节能高效，这个取决于华为针对不同应用场景，不同电网条件，做出的技术和结构优化。例如，ECO模式，提高功率因数，降低谐波污染。

　　华为UPS5000-E的ECO模式是UPS中最有优势的技术之一，主要用于节能环保方面的。如果市电质量比较高的时候，ECO模式下，由市电走旁路供电，逆变器待机;市电故障时才由逆变器供电，实现2ms快速切换逆变模式，减少市电经UPS造成电源损失，使得UPS系统效率99%以上。

　　提高功率因数，降低谐波污染是降低对电网污染，创造绿色用电环境的关键。采购像华为华为UPS5000E这种较为先进的绿色USP机型效率可高达96%，是一款典型的绿色环保型UPS。体积小、效率高。可以大大节省宝贵的机房空间，有效节省自身耗电，同时也减小了对机房空调容量的要求。低输入电流谐波，可以减少设备对电网的干扰，使挂在电网上的其它设备免受影响。

　　华为UPS5000-E 易用

　　选购合适和UPS不间断电源很重要，如何用USP不间断电源更加重要。有了合适的产品，不会有效的应用，同样会对数据中心的用电安全造成威胁。而以前大型的USP产品都是需要有非常专业的工程师进行维护和操作，这样不但不利于节约企业运行成本，在UPS出现问题的时候很容易耽误时间，造成不必要的损失。

　　也是因为考虑到这个问题，华为UPS5000-E的使用起来非常智能，用起来也很方便。

　　全模块化架构，华为UPS5000-E可轻松实现边成长边扩容;故障状况下用户可自行在线维护，平均维护时间(MTTR)大幅缩短，大幅提升系统可用性;

　　另外华为UPS5000-E功率模块的功率密度是行业中最高的，它可以达到18.3W/inch。即单模块40KVA/KW，在19英寸的机柜中仅占用3U的高度。功率模块内使用双DSP，分别对整流和逆变进行控制，并通过直流母线解耦，大大降低了逻辑复杂度，减小了故障概率。

　　华为UPS5000-E 智能

　　经过多年的发展，智能化设计已经融入到各种产品当中，华为的UPS5000-E自然不会在这方面落后。UPS5000-E使用了关键供电节点精细化管理，支持智能运维，易损部件故障提前预测，再配合智能网管，随时随地掌握UPS5000-E运行信息。

　　华为UPS5000E系列模块化UPS具有专业、全面的电池组管理功能。标配RS232/485、SNMP卡、MODBUS卡、干接点卡。通过电话网络或者数据网络实现对UPS的远端监控。华为UPS具有功能强大的人性化软件操作平台，客户可通过软件实现对所有华为 UPS机型的集中监控，也可以通过通信协议将华为UPS并入既有的监控系统，实现对它们的监管。此外，大型的LCD人机界面可以全中文显示UPS的各种运行状态，多达2000项的事件纪录、近远端紧急关机键等功能为UPS的故障判断及紧急情况的处理提供了方便。

　　智能电池管理，智能温度补偿是此款UPS产品智能表现的另外一个方面。通过这种设计，可以有效的避免电池过充或过欠，以及电池休眠功能，延长电池寿命50%。电池30-40节可调设计，轻松实现电池的精确配置及利旧，并且拥有超宽的输入电压范围(线电压)138-485Vac和超宽电压频率40-70Hz，因此不需要频繁切换电池模式供电，从而节省电池的使用次数，延长电池寿命。与此同时母线电容、风扇、电池等关键部件失效提前预警，消除潜在故障，提升系统供电可靠性。

　　值得注意的是易损部件故障提前预测是华为UPS5000-E智能表现的重要方面。

　　总结：

　　2014年11月，华为模块化UPS为香港国际机场业务不间断提供可靠供电保障。香港国际机场决定对航站楼旅客运营传输系统的不间断供电电源进行重新规划及建设，并提出了“供电系统零中断，系统可靠性具备多重保障”的建设目标。针对香港国际机场对供电系统的严苛要求，华为提供智能化、高可靠的UPS不间断供电解决方案。其应用的就是UPS5000-E系列不间断电源系列产品，在本次合作中，香港国际机场项目负责人表示：“华为UPS解决方案有效改善香港机场供电系统的可扩展性与可用性，UPS5000-E具备96%高效率，在匹配机场电源系统需求在保障系统可靠性的前提下，简化运维、节省运维成本

Internet data center (IDC), enterprise self-service data center and data backup center are the most important components and facilities of various related industries in the mobile Internet era. All kinds of important information of users, enterprise information and so on are stored in these places. More importantly, as large data and cloud storage are becoming popular, the intrinsic information is more important, and if the relevant data center goes down because of power outages, the loss is immeasurable.

Therefore, in view of the data security of the data center, to ensure the continuity of its power supply, stability and efficient, green use of energy, will be the most necessary and need to focus on. To this end, Huawei, the world's leading provider of information and communication solutions, has come up with a sincere work - --- UPS5000-E full modular uninterruptible power supply products, based on more than 20 years of experience in power supply applications. UPS5000-E is a fully modular product launched by Huawei. The modules support hot-plugging, can be online expansion, maintenance, wall mounting, positive maintenance, greatly saving operation and maintenance time, reducing the cost of manual maintenance. The efficiency of UPS5000-E is as high as 96% in online mode. It is widely used in small and medium-sized data centers. Large and medium-sized shopping centers, security systems and other large and medium power consumption scenarios.

HUAWEI UPS5000-E reliable

Huawei UPS5000-E modular design concept comprehensively optimizes the "N+X" redundancy scheme, that is, users installed in a system must be able to support the maximum system load required by the minimum number of modules and X more modules, so that in the case of X module failure, can still ensure the normal operation of the system. This is more secure than the traditional UPS's "1+1" and "N+1" fault tolerance rates.

UPS5000-E modular UPS all modules can be hot-plugged, fault module can be replaced online when the fault, MTTR control within 5 minutes. The usability of UPS will be pushed to the extreme. The traditional UPS has a long repair time and is very difficult to repair. It needs a specially trained maintenance technician to find and analyze the cause of the failure by experience, to determine the fault initiation point and the damaged parts, to formulate maintenance plan, to transfer spare parts, to replace maintenance, to debug and run after repair, to hand in. Pay the user. In the above links, if there is a mistake in one link, the maintenance process will be extended.

In addition to the above main features, HUAWEI UPS5000-E also performs well in terms of intelligence and overload.

5KA lightning protection design and 6KVA surge protection design, effectively reduce the failure rate of lightning stroke, according to the high standards of the computer room design, the industry's highest. The fault tolerance of the fan is strong. One fan can be damaged with 50% loads, and two fans can be damaged with 30% loads.

HUAWEI UPS5000-E high efficiency

According to reports, Huawei UPS system itself, first of all pure clean energy, will not bring noise to the grid, that is, the input side of the grid is "0" pollution equipment; second, in the output side, Huawei UPS "send out" AC power, will not interfere with the load; third, Huawei UPS itself will not consume too much electricity. The conversion efficiency of the system is as high as 96%. This means that under the 200kVA load, HUAWEI UPS will save 79000 degrees of electricity per year compared to the traditional 92% efficiency.

To achieve such energy-saving and efficient, this depends on Huawei for different application scenarios, different grid conditions, to make the technical and structural optimization. For example, ECO mode improves power factor and reduces harmonic pollution.

Huawei UPS5000-E ECO model is one of the most advantageous UPS technologies, mainly used for energy saving and environmental protection. If the city power quality is relatively high, under the ECO mode, by-pass power supply by the city power supply, inverter standby; when the city power failure by the inverter power supply, the realization of 2ms fast switching inverter mode, reduce the power loss caused by the city power through UPS, making the UPS system efficiency more than 99%.

Increasing the power factor and reducing the harmonic pollution are the key to reduce the power grid pollution and create a green electricity environment. Purchasing advanced green USP models like Huawei Huawei UPS5000E can be as efficient as 96%, which is a typical green UPS. Small size and high efficiency. It can greatly save valuable room space, effectively save their own power consumption, but also reduce the air conditioning capacity of the room requirements. Low input current harmonics can reduce the interference of equipment to the grid, so that other equipment hanging on the grid is not affected.

HUAWEI UPS5000-E easy to use

Choosing suitable and UPS UPS is very important. How to use USP UPS is more important. With the right product, it will not be effective application, it will also pose a threat to the security of the data center. In the past, large-scale USP products require very professional engineers to maintain and operate, which is not conducive to saving enterprise operating costs, UPS problems are easy to delay time, resulting in unnecessary losses.

Also because of this problem, Huawei UPS5000-E is very intelligent and easy to use.

Full modular architecture, Huawei UPS5000-E can easily achieve growth while expanding capacity; in case of failure, users can maintain on-line, the average maintenance time (MTTR) is greatly reduced, greatly improving the system availability;

In addition, the power density of HUAWEI UPS5000-E power module is the highest in the industry, and it can reach 18.3W/inch. The single module 40KVA/KW occupies only 3U of the 19 inch cabinet. Two DSPs are used in the power module to control the rectifier and inverter respectively. By decoupling the DC bus, the logic complexity is greatly reduced and the inverter is reduced.
