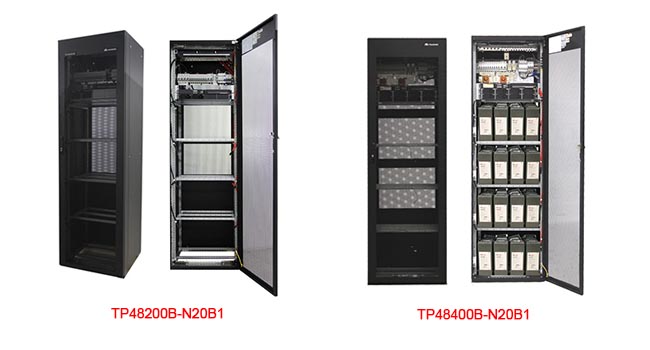

华为TP48200B华为TP48200B，华为TP48200B-N20B1，华为TP48400B-N20B1
TP48200B、TP48400B 室内电源，可应用于多种网络场景，如无线接入网、有线接入网、传送网、企业网通讯机房等，为负载提供稳定、可靠的-48V直流电。 电源采用一体化集成设计，配置48V/50A整流模块，效率高达96%以上，额定输出容量200A~400A。
关键特性 节能省地的室内电源直流供电理想选择 l 节能：支持平滑叠光（以深圳日照4小时，5kW站点负载为例，每年节省电能7300kWh）；支持高温电池管理，降低36%站点能耗（以非洲，2kW站点负载为例）； l 节地：单柜支持最大760Ah电池或8个BBU收容，实现供备电及设备一体化； l 智能管理：集成多路动力环境监控接口，与华为主设备可带内传输，节省投资，便于管理； l 易维护：部件级到系统级运维管理系统，支持电源、电池、模块等部件健康度管理及系统级报表远程控制。
技术规格
1.整流模块效率>96%，节能减排 简单、高效、可靠的智能室内供电方案
“华为TP48200B48V200A室内通信电源”其他说明
华为TP48200B，华为TP48200B-N20B1，华为TP48400B-N20B1 HUAWEI TP48200B, HUAWEI TP48200B-N20B1, HUAWEI TP48400B-N20B1 TP48200B, TP48400B indoor power supply, can be used in a variety of network scenarios, such as wireless access network, wired access network, transport network, enterprise network communication room, etc., to provide a stable and reliable load - 48V DC. The power supply adopts integrated design, equipped with 48V / 50A rectifier module, the efficiency is as high as 96%, rated output capacity 200A ~ 400A. Key characteristics Ideal choice of DC power supply for indoor energy supply and land saving 1 Energy-saving: support smooth overlay (Shenzhen sunshine 4 hours, 5kW site load, for example, to save 7,300 kWh per year); support high-temperature battery management, reduce energy consumption by 36% (Africa, 2kW site load, for example); L section: single cabinet supports the largest 760Ah battery or 8 BBU storage to achieve the integration of power supply and equipment. Intelligent management: integrated multi-channel power environment monitoring interface, with Huawei main equipment can be in-band transmission, saving investment, easy to manage; Easy to maintain: component-level to system-level operation and maintenance management system, support power supply, batteries, modules and other components health management and system-level report remote control. technical specifications parameter TP48200B-N20B2 TP48400B-N20B3 System size 2000mm (H) x 600mm (W) x 600mm (D) 2000mm (H) x 600mm (W) x 600mm (D) Empty cabinet weight Less than 100Kg Less than 100Kg working temperature -10 C ~ +45 C -10 C ~ +45 C AC input system 220/380VAC three-phase four wire 220/380VAC three-phase four wire AC input voltage 85VAC~300VAC 85VAC~300VAC AC input frequency 45Hz~66Hz 45Hz~66Hz DC output voltage -42VDC ~ -58VDC -42VDC ~ -58VDC DC output LLVD:MCB 2 x 80A, 1 x 32A, 2 x 20A BLVD:MCB 2 x 32A, 3 x 16A, 1 x 10A Storage battery: MCB 125A * 2 LLVD: 2 x 100A/1P, 2 x 63A/1P, 4 x 32A/1P, 2 x 16A/1P BLVD:MCB 4 x 63A/1P, 2 x 16A/1P, 2 x 10A/1P Storage battery: MCB 125A * 4 Maximum output current 200A 400A Battery number 2 groups 4 groups Undefined Product characteristics: 1. rectifier module efficiency >96%, energy saving and emission reduction 2. perfect module sleep function to further improve system efficiency 3. ultra wide rectifier module working temperature: -40 ~ +75 C, 55 C no reduction. The 4. module supports hot swap, installation and maintenance convenience. 5. intelligent battery management and battery protection to extend battery life. 6. rich signal interface, remote management through dry contact, serial port or network interface. 7., through the main equipment of HUAWEI, the transmission network can be realized, saving transmission resources and increasing power. Source network reliability 8. flexibly match various indoor installation scenarios. 9.32U built in battery and main equipment space, effective use of computer room area (integrated power) Simple, efficient and reliable intelligent indoor power supply scheme Simple: single cabinet to store power, batteries and main equipment, save land; integrated multi-channel power environment monitoring interface, support in-band transmission, save investment, easy to manage; Efficient: the system uses 98% of the industry-leading rectifier module, 55 C output does not reduce; can integrate solar power supply module, effective use of solar energy, reduce the use of power grid, energy conservation and emission reduction; Reliability: 55 C output power system, 85 ~ 300V ultra-wide operating voltage range, 500V high voltage, suitable for all kinds of harsh grid scenarios; failure rate is far below the industry average level, saving maintenance costs; electronic tag function, easy to asset management and quality problem traceability. The indoor power supply includes the necessary power cabinet and rectifier module, as well as the batteries, cables and sensors. Power cabinet: including cabinets, AC input and DC output power distribution unit and monitoring module. Rectifier module: according to different needs, economic configuration and standard configuration are optional. The type and quantity of rectifier module are determined by load power and maximum battery charging power. Battery: battery is selected according to load power and timing. Outside cabinets: including AC line, battery line (TP48300B and TP48600B to match) and ground wire. The specific shipment configuration should be based on industry data. Sensors: matching according to needs. For TP48200B, including battery temperature, ambient temperature and humidity, door magnetic switch, smoke and water immersion sensor; for TP48300B and TP48600B, including battery temperature, smoke, ambient temperature sensor. technical specifications Product model TP48200B-N20B2 TP48300B-N16C1 TP48400B-N20B3 TP48600B-N20B1 System size (wide * Deep * high) 600mm * 600mm * 2000mm 400mm * 600mm * 1600mm 600mm * 600mm * 2000mm 600mm * 600mm * 2000mm Empty cabinet weight Less than 100Kg Less than 60Kg Less than 100Kg Less than 131Kg The rectifier module has a maximum configuration of 4 x 50A, a maximum of 6 x 50A, a maximum of 8 x 50A and a maximum of 12 x 50A. AC input system 220/380Vac three-phase, 220Vac single-phase 220/380Vac three-phase four wire 220/380Vac three-phase, 220Vac three-phase three wire 220/380V three-phase four wire AC Input Open 1 *63A/3P MCB 1 *63A/3P MCB (Optional Double Manual Switching) 1 *63A/3P MCB 1 *125A/3P MCB AC input voltage 85Vac~300Vac 85Vac~300Vac 85Vac~300Vac 85Vac~300Vac AC input frequency 45Hz~66Hz 45Hz~66Hz 45Hz~66Hz 45Hz~66Hz Maximum capacity 12kW (4 x 3000W) 18kW (6 x 3000 W) 24kW (8 x 3000W) 36kW (12 x 3000W) DC output voltage -42Vdc ~ -58Vdc -42Vdc ~ -58Vdc -42Vdc ~ -58Vdc -42Vdc ~ -58Vdc DC output One power down branch: 2 x 80A MCB, 1 x 32A MCB, 2 x 20A MCB The two power down branch is 2 x 32A MCB, 3 x 16A MCB, 1 x 10A MCB. Battery branch: 2 x 125A MCB One power down branch: 3 x 100A (fuse), 1 x 32A MCB The two power down branch is 2 x 32A MCB, 2 x 10A MCB. Battery branch: 2 x 华为TP48200B，华为TP48200B-N20B1，华为TP48400B-N20B1 上一篇华为TP48300B下一篇华为TP48200A |
