产品规格华为嵌入式通信电源模块华为ETP48100-B1
华为嵌入式通信电源模块华为ETP48100-B1配电盒参数
产品资料功能： 提供将220V AC 转-48V DC，为BBU、2路RRU供电。
输入电流：输入交流空开20A，1路220V AC输入，输入电源线为25mm2电源线。

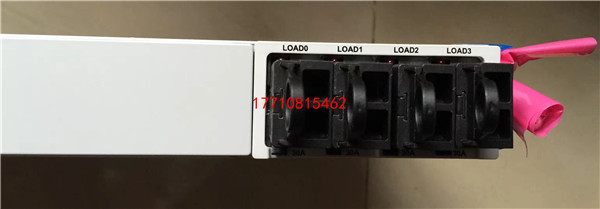

参数规格配电规格：4*30A（快插）
输出电压：-42V DC~-58V DC
输出功率：3000W
应用场景：
室分站，1个单电源板或双电源板（UPEU）BBU+2个室分RRU
华为嵌入式通信电源模块华为ETP48100-B1按装DCDU/ETP48100电源输入线
a) 直流：裁剪16mm2蓝黑电源线并压接端子，连接至DCDU与电源柜
b) 交流：将交流输入电源线两端分别连接至ETP48100与AC220V电源插排，多余线缆盘绕绑扎在机框旁边

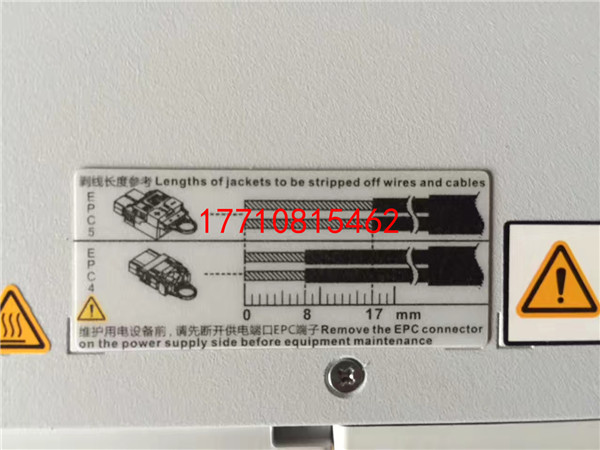

线缆布放时须用绝缘胶带缠绕端头，使之绝缘，电源柜侧接电时，须使用经过绝缘处理的工具，接电前需确认空开关闭或拔出熔丝
电源线和信号线需间隔30mm固定，室内用白色线扣十字交叉绑扎，齐根剪平不拉尖，室外用黑色线扣，留3-5mm后剪掉

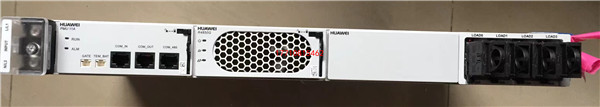

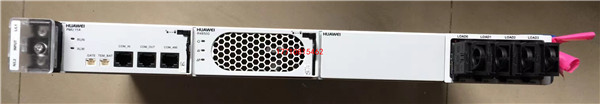

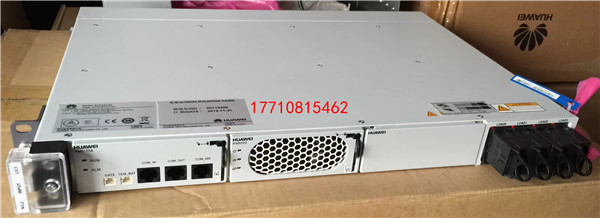

华为ETP 48100-B1 50A -48V 100A通信电源，OLT C300/MA5680T电源
可以带中兴C220/C300/C320,华MA5680T/MA5683T 业务板满配配置
220V转48V 交流转之流 OLT电源转接板

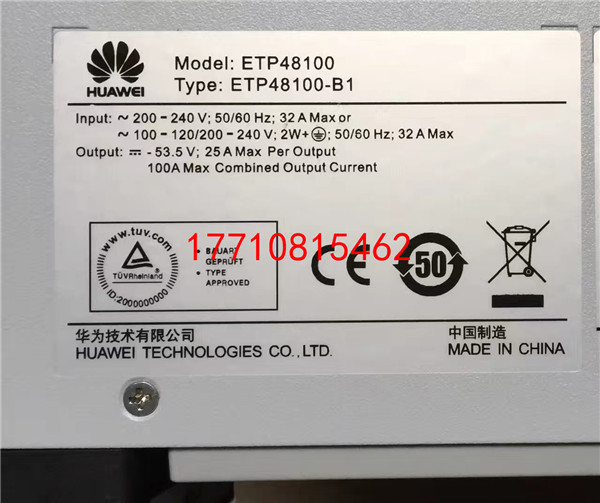

MOdel：ETP48100
Type：ETP48100-B1
输入220v，输出48v，整流模块R4850G2，48v50a模块,满配两个
华为ETP48100-B1华为嵌入式通信电源

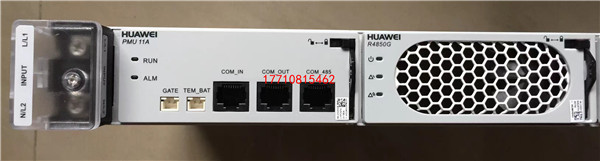

监控模块PMU11A
华为(HUAWEI) ETP48100-B1 OLT光接入网电源转接板50A交流转直流电源
华为ETP48100-B1嵌入式电源,输出-48V50
华为ETP48100-B1电源-48v50A大功率100A通信电源系统
华为ETP48100-A1/ETP48100-B1】价格_厂家
ETP48100-B1_华为ETP48100-B1
华为(Huawei)ETP48100-B1 OLT光接入网电源图片,商品介绍
现货出售
华为嵌入式通信电源模块ETP48100-B1
华为ETP48100-B14815电源48100适用
华为ETP48100-A1/ETP48100-B1系统参数和安装使用
华为ETP48100（交流转直流配电系统）
世界级的大会需要世界级的通信服务，上海铁塔携手三家运营商为17-19日正式在沪召开的2018世界人工智能大会提供了服务保障。
作为上海举办的全球性人工智能高端会议，本次大会以"人工智能赋能新时代"为主题，以"国际化、高端化、专业化"为特色，集聚了全球人工智能领域最具影响力的科学家、企业家和相关政府领导人，围绕人工智能领域的技术前沿、产业趋势和热点问题发表演讲和进行高端对话，打造世界顶尖的人工智能合作交流平台，推动和主导人工智能产业和技术创新融合发展。
为确保本次大会的顺利召开，上海铁塔携手三家运营商对大会区域统一进行站址规划，并负责选址和建设，此模式得到了市通管局、市经信委和社会各方的高度评价。共计新建9个室外宏基站（4个新建、5个共享改造）、16个微站、4个室分场馆，在工期紧、协调难度大、工程质量要求高的前提下，上海铁塔南区分公司团队克服高温、台风等各种不利因素，连续加班加点、通宵施工，最终圆满完成了本次大会通信建设的所有交付任务。

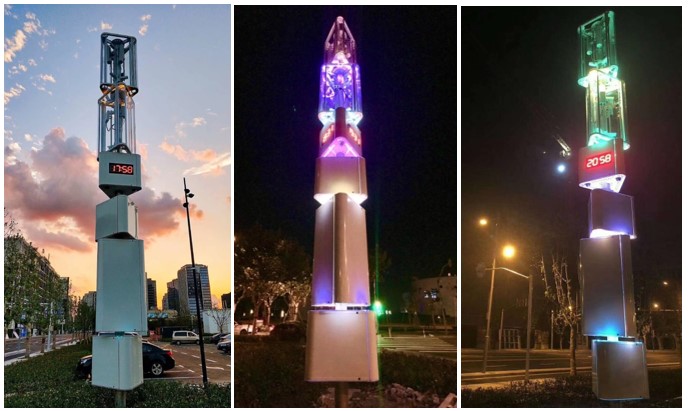

在大会召开的徐汇滨江核心区域内，上海铁塔为大会量身打造了一座标志性美化基站通信塔"魔方塔"。虽然这座极具现代感的塔不大，但却集约了三家运营商的通信设备于一身，此外还可拓展展板、广告等功能，既体现了美观性，又充分展现了经济性和社会共享理念。
