华为PHD-3000WA交流/高压直流电源模块
<span font-size:14px;background-color:#fffce1;"="" style="margin: 0px; padding: 0px; list-style-type: none; color: rgb(0, 102, 204);">华为3000W交流&高压直流电源模块PHD-3000WA 路由器 3000W 交流&高压直流PM模块 PM模块通过PEM模块将电源从外部接入，然后输出到电源背板。 概述 表1 电源属性
表2 电源对应产品与版本支持情况

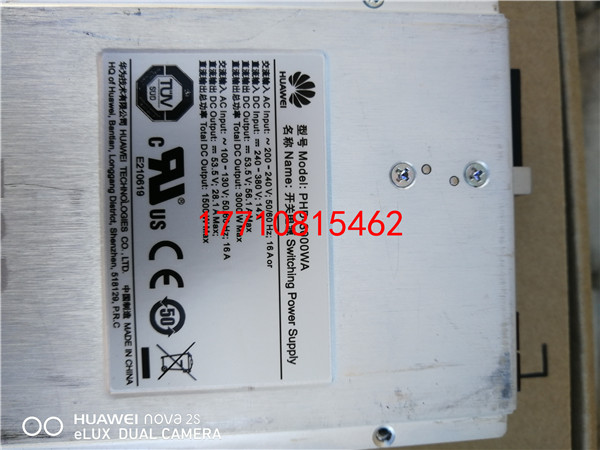

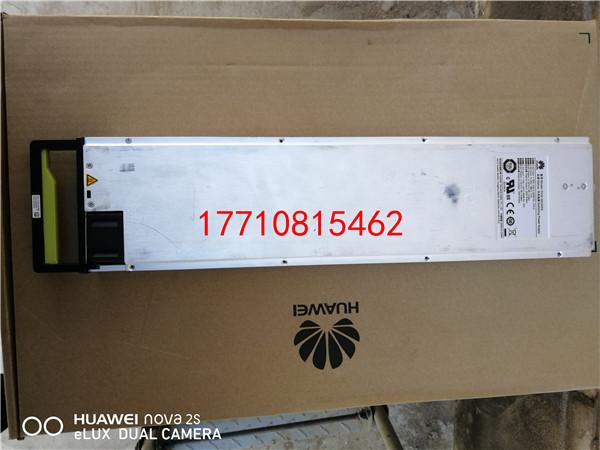

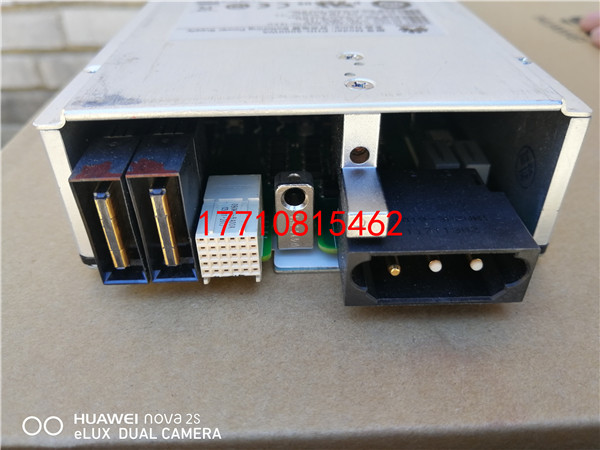

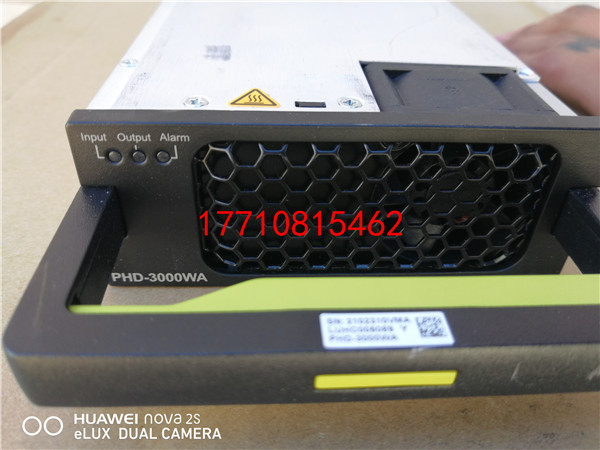

外观 PM模块如图1所示。 图1 PM模块示意图 图2 交流PEM模块示意图 图4 PM模块面板外观图
技术指标
说明： 交流供电支持200-240V系统，支持供电电压（180~264V），不支持110V单相交流输入，可以支持110V双火线系统，要求双火线供电电压满足180V~264V。
Brand: HUAWEI Model: PHD-3000WA < span font-size: 14px; background-color: # fffce1; "=" "style =" margin: 0px; padding: 0px; list-style-type: none; color: RGB (0, 102, 204); "> Huawei 3000W AC & HVDC module PHD-3000WA router 3000W AC high voltage DC PM module The PM module connects the power supply from the outside to the power backplane through the PEM module. Summary Table 1 power attributes attribute describe describe 3000W AC high voltage DC power module BOM 02310VMA Model PHD-3000WA Table 2 power supply product and version support product Minimum software version NE5000E-X16A V800R006C00 NE5000E CCC-A V800R006C00 Appearance The PM module is shown in Figure 1. Fig. 1 Schematic diagram of PM module The PM module has no external power input interface, and the AC PEM module or HVDC PEM module connects the power from the outside. The AC PEM module is shown in Figure 2, and the HVDC PEM module is shown in Figure 3. Fig. 2 Schematic diagram of AC PEM module Fig. 3 Schematic diagram of HVDC PEM module panel Fig. 4 faceplate of PM module panel Table 3 indication light Name Indicator color Normal state Abnormal state Abnormal cause Input green bright Extinguish No AC input. Output green bright Extinguish The module has no output. Alarm gules Extinguish bright Fan failure Overtemperature protection Output overvoltage protection Output overcurrent protection or short circuit Module current is seriously unbalanced. Technical indicators project describe Dimensions (width, depth, height) 107mm * 437mm * 41.5mm weight 2.0kg Input rated voltage 200V AC to 240V AC (220V power grid) 240V DC/380V DC Input voltage range 180V AC to 264V AC 192V DC to 400V DC Maximum input current 16A Maximum output power 3000W Typical power consumption 182W Typical heat dissipation value 590.5BTU/hour Explain: AC power supply support 200-240V system, support power supply voltage (180-264V), do not support 110V single-phase AC input, can support 110V dual-line system, dual-line power supply voltage to meet the requirements of 180V-264V. 华为通信电源,华为电源官网,华为高频开关电源,华为-48v开关电源,华为开关电源模块,华为网络机柜,华为服务器机柜,华为室外一体化机柜,华为OLT电源,华为直流电源,华为开关电源,华为综合柜,华为UPS,UPS5000-E,UPS2000-A,UPS2000-G,UPS8000-D,UPS5000-A,华为TP48200,华为TP48300,华为TP48600 |
