智能可靠的华为UPS5000-E-480K模块化UPS技术参数

随着云计算等IT业务的飞速发展，对IT&CT机房服务器、计算机类设备的供电需求不断提高，UPS供电解决方案越来越多地重视系统的可靠性以及绿色节能问题。

　　现阶段数据中心逐步由成本中心转向利润中心，现代数据中心对供电的需求发生了变化，趋向于按需扩容，提高可维护性，提高效率，减少占地面积等。传统UPS已难以匹配数据中心的需求，高频模块化UPS是未来的发展趋势，是用户的必然选择。而华为公司从事电源行业已有二十余年，携着丰富的电源研发经验和雄厚的研发实力，不断加大能源领域的投入，推出了满足各种大、中、小型的全系列UPS产品。

　　如今，华为公司应对行业发展潮流，重点推出全模块化UPS产品UPS5000-E。它效率高达96%，节能实力业界领先；全模块支持热拔插，可在线扩容、维护，可为客户大幅度节省运维成本。

多重防护　降低断电风险

　　华为UPS5000-E的模块式设计理念全面优化了“N+X”冗余方案，就是说用户在一个系统中安装了必能支持最大系统负载所需要的最少模块还多X个模块，那么就能够在X个模块出现故障的情况下，仍能保证系统的正常运行。这比起传统UPS的“1+1”和“N+1”容错率只有一次来说，安全性更高了。

　　华为UPS5000-E拥有38-485Vac超宽电压输入范围，305-485Vac不降额，305-138Vac线性降额至40%，减少转电池次数，延长电池寿命。

　　5KA防雷设计和6KVA防浪涌设计，有效降低雷击失效率,按照机房高标准设计，业界最高。风扇容错能力强，一路风扇损坏可带50%负载，两路风扇损坏可带30%负载。母线电容、风扇、电池等关键部件失效提前预警，消除潜在故障，提升系统供电可靠性。

低损耗　更低运营成本

　　华为UPS5000-E不会为电网带来杂讯，即在输入端对电网而言是"0"污染的设备。在输出端，华为UPS5000-E送出去的交流电，不会对负载产生干扰。华为UPS本身不会消耗太多的电能，系统转换效率高达96%。这意味着在200kVA负载下，相对传统92%的效率，华为UPS每年会节省79000度电。

　　华为UPS5000-E功率模块的功率密度是行业中最高的，它可以达到18.3W/inch。即单模块40KVA/KW，在19英寸的机柜中仅占用3U的高度。功率模块内使用双DSP，分别对整流和逆变进行控制，并通过直流母线解耦，大大降低了逻辑复杂度，减小了故障概率。

　　智能休眠功能，自动休眠未使用模块，时刻保障系统高效运行，延长电池寿命50%。电池30-40节可调设计，轻松实现电池的精确配置及利旧，并且拥有超宽的输入电压范围(线电压)138-485Vac和超宽电压频率40-70Hz，因此不需要频繁切换电池模式供电，从而节省电池的使用次数，延长电池寿命。

全模块化设计　快速扩容

　　传统UPS发生故障后，修复时间长，而且很困难，出现故障需要有受过专门培训的维护技术人员凭经验对故障原因的查找和分析后，以确定故障引发点和受损部位，制定维修方案，调取备件、更换维修，修复后调试、试运行，交付用户。在上述环节中，若有一个环节出现判断失误，维修过程就要延长。

　　华为UPS5000-E是先进的模块化UPS，功率模块、监控模块、旁路模块、控制模块均为模块化设计，支持热插拔，快速更换模块，安装、扩容、维护极其简易。所有模块均可热拔插，故障时可在线更换故障模块，将MTTR控制在5min内，将UPS的可用性推向极致。同时华为UPS5000-E采用自适应并机技术，支持4台UPS并联，通过标配并机卡和母线同步控制器，轻松实现多种配置

智能监控　易管理

　　华为UPS5000-E具备智能电池管理，智能温度补偿，避免电池过充或过欠，以及电池休眠功能，延长电池寿命50%。电池30-40节可调设计，轻松实现电池的精确配置及利旧，并且拥有超宽的输入电压范围(线电压)138-485Vac和超宽电压频率40-70Hz，因此不需要频繁切换电池模式供电，从而节省电池的使用次数，延长电池寿命。

　　7英寸超大液晶触摸屏，图像数字化显示，支持多种语言，三步定位故障，简易的操作界面以及完善的远程监控功能，客户可以简单的操作和管理。

华为UPS5000-E系列模块化UPS具有专业、全面的电池组管理功能。标配RS232/485、SNMP卡、MODBUS卡、干接点卡。通过电话网络或者数据网络实现对UPS的远端监控。华为UPS具有功能强大的人性化软件操作平台，客户可通过软件实现对所有华为 UPS机型的集中监控，也可以通过通信协议将华为UPS并入既有的监控系统，实现对它们的监管。

　　华为UPS5000-E为地级市数据中心、航空信号塔、安全系统、银行数据中心等各种场景提供安全不间断电源，保障我们的生活分秒‘0’故障。全模块化设计，在线维护扩容，让传统的维护工作立即变简单；320kVA/0.5m2，前维护，相较传统机柜，空间上更加节约，让您的“房屋”投资立减；96%高效率，绿色节能，帮助您电力消耗锐减。华为模块化UPS，可靠、高效、易用、智能的最佳诠释。

Intelligent and reliable HUAWEI UPS5000-E-480K modular UPS technical parameters

With the rapid development of IT services such as cloud computing, the demand for power supply for IT&CT computer room servers and computer equipment is increasing. UPS power supply solutions pay more and more attention to system reliability and green energy saving.

At present, the data center is gradually shifting from cost center to profit center. The demand of modern data center for power supply has changed. It tends to expand on demand, improve maintainability, improve efficiency and reduce land occupation.  Traditional UPS has been difficult to match the needs of data centers, high-frequency modular UPS is the future development trend, is the inevitable choice of users.  Huawei has been engaged in the power industry for more than 20 years. With abundant experience and strong R&D strength, Huawei has continuously increased its investment in the field of energy, and launched a full range of UPS products to meet the needs of large, medium and small scale.

Today, HUAWEI is responding to the trend of the industry and focuses on the introduction of fully modular UPS product UPS5000-E. Its efficiency is as high as 96%, energy-saving strength industry leading; full module support hot-plug, online expansion, maintenance, can greatly save operation and maintenance costs for customers.

Multiple protection to reduce power failure risk

Huawei UPS5000-E modular design concept comprehensively optimizes the "N+X" redundancy scheme, that is, users installed in a system must be able to support the maximum system load required by the minimum number of modules and X more modules, so that in the case of X module failure, can still ensure the normal operation of the system. This is more secure than the traditional UPS's "1+1" and "N+1" fault tolerance rates.

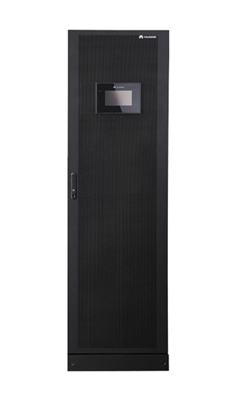

HUAWEI UPS5000-E modularization UPS intelligence more reliable

Huawei UPS5000-E has a 38-485Vac ultra-wide voltage input range, 305-485Vac does not reduce, 305-138Vac linear reduction to 40%, reduce the number of battery switching, prolong battery life.

5KA lightning protection design and 6KVA surge protection design, effectively reduce the failure rate of lightning stroke, according to the high standards of the computer room design, the industry's highest. The fault tolerance of the fan is strong. One fan can be damaged with 50% loads, and two fans can be damaged with 30% loads. Bus capacitors, fans, batteries and other key components failure early warning, eliminating potential failures, improve the reliability of the system power supply.

Low loss and lower operation cost

HUAWEI UPS5000-E will not bring noise to the power grid, that is, the "0" pollution equipment will be used at the input side for the power grid. At the output side, HUAWEI UPS5000-E sends out alternating current, which does not interfere with the load. HUAWEI UPS itself does not consume too much electricity, and the system conversion efficiency is as high as 96%. This means that under the 200kVA load, HUAWEI UPS will save 79000 degrees of electricity per year compared to the traditional 92% efficiency.

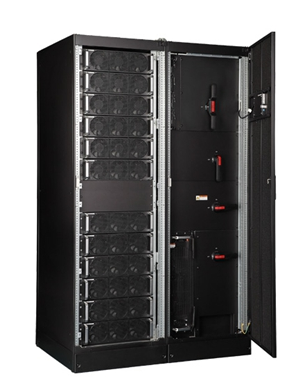

HUAWEI UPS5000-E modularization UPS intelligence more reliable

The power density of HUAWEI UPS5000-E power module is the highest in the industry, and it can reach 18.3W/inch. The single module 40KVA/KW occupies only 3U of the 19 inch cabinet. Two DSPs are used in the power module to control the rectifier and inverter respectively. By decoupling the DC bus, the logic complexity is greatly reduced and the fault probability is reduced.

Intelligent dormancy function, automatic dormancy unused module, time to ensure the efficient operation of the system, extend battery life by 50%. Battery 30-40 adjustable design, easy to achieve accurate battery configuration and old, and has an ultra-wide input voltage range (line voltage) 138-485 Vac and ultra-wide voltage frequency 40-70 Hz, so it does not need to frequently switch battery mode power supply, thereby saving battery use times and prolonging battery life.

Full modular design and rapid expansion

The traditional UPS has a long repair time and is very difficult to repair. It needs a specially trained maintenance technician to find and analyze the cause of the failure by experience, to determine the fault initiation point and the damaged parts, to formulate maintenance plan, to transfer spare parts, to replace maintenance, to debug and run after repair, to hand in. Pay the user. In the above links, if there is a mistake in one link, the maintenance process will be extended.

Huawei UPS5000-E is an advanced modular UPS, power module, monitoring module, bypass module, control module are modular design, support hot-plug, fast replacement module, installation, expansion, maintenance is extremely simple. All modules can be hot-plugged, fault module can be replaced online when the fault, MTTR control within 5 minutes, the availability of UPS to the extreme. At the same time, Huawei UPS5000-E adopts adaptive parallel technology, supports four UPS parallel connection, through standard parallel card and bus synchronization controller, easy to achieve a variety of configurations.

Intelligent monitoring and management

Huawei UPS5000-E has the functions of intelligent battery management, intelligent temperature compensation, avoiding battery overcharge or undercharge, and battery dormancy, extending battery life by 50%. Battery 30-40 adjustable design, easy to achieve accurate battery configuration and old, and has an ultra-wide input voltage range (line voltage) 138-485 Vac and ultra-wide voltage frequency 40-70 Hz, so it does not need to frequently switch battery mode power supply, thereby saving battery use times and prolonging battery life.

7 inch LCD touch screen, digital image display, support multi-language, three-step fault location, simple operation interface and perfect remote monitoring function, customers can operate and manage easily.

HUAWEI UPS5000-E Series modular UPS has a professional and comprehensive battery management function. Standard RS232/485, SNMP card, MODBUS card, dry card. Remote monitoring of UPS is realized through telephone network or data network. HUAWEI UPS has a powerful humanized software operation platform, customers can pass the soft.
