卓越表现,灵活百变的华为UPS2000-G-10KRTL电源技术参数

华为UPS,华为UPS2000-G-10KRTL,华为UPS电源

随着电子技术与信息科技的发展，计算机、多媒体、互联网等各式各样的信息应用正快速地渗入社会的各个领域。网络技术与应用的发展，分布式的信息发展模式已告确立，由于信息本身就是最高附加值的产物，为了确保信息安全与计算机系统的正常运行，其对电源品质的要求也就更加严格。

　　突如其来的断电不仅造成智能设备的损耗，还导致各种重要数据的丢失。而传统以模拟电路控制为主的UPS己无法达到智能化的需求，引进微电脑数字控制技术乃大势所趋。UPS的发展将进入全数字化的时代，传统的模拟控制UPS即将走进历史，取而代之的将是外型美观、安全可靠、轻薄短小的微电脑数字控制式智能型UPS。

　　作为轻薄小巧UPS产品的新贵，华为UPS2000-G系列不间断电源产品。华为此系列UPS，主要面向中小型数据中心机房和企事业单位，非常适合资金有限，空间有效的中小型机构采购使用。

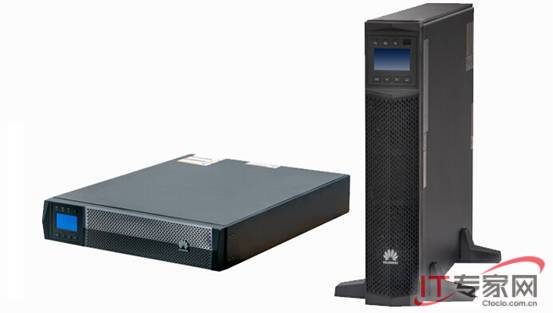

　　华为UPS2000-G-10KRTS是此系列产品中的核心机型，容量10kVA/9kW，采用了单相输入单相输出/三相输入单相输出的输入制式，高效率、高密度、高可靠等特点成为其核心优势。整体而言，该款产品具有可靠、高效、易用、智能等特点，是电信系统、文件服务器、企业服务器、中心服务器、微机、集线器、数据中心及其它要求高质量电源保护设备的理想电源保障。

　　适应多变　应用场景

　　易管理、易维护的一体化监控实时显示系统运行状态，智能电池管理有效提升电池寿命50%，具体而言，电池节数可实现灵活调整，华为UPS2000-G-10KRTS机型支持16-20节电池, 而同一系列的15/20kVA支持32-40节电池可调，如遇故障，剩余电池可继续为系统备电。

　　电池智能充放电管理及智能休眠，自动均浮充转换，实现温度补偿，电网条件较好的地区可使电池得到休眠，测电池充电状态，及时告警防止热失控发生。

　　华为UPS2000-G-10KRTS还可根据易损器件失效预警，消除断电风险，变事后维护为事先保养，这样的预警功能针对不同使用场景及时避免了更为严重的故障，值得称道。

　　长时可靠 安全稳定

　　华为UPS2000-G-10KRTS，拥有极高的电网适应性，可以有效延长电池寿命，而这有赖于华为华为UPS2000-G-10KRTS拥有宽电压频率输入，其输入电压范围为80v-280v，输入频率范围为40Hz-70Hz，具备良好的油机适应性，这样的设计可以保障该产品可以适用于极端电网宽电压输出范围，解决了因为电网电压频率跳变，发电机接入时频率不稳定，造成跳转电池的问题，全面提升产品的可靠性。

　　华为UPS2000-G-10KRTS具备负载适应性强，可以确保供电质量。华为UPS2000-G-10KRTS过载能力十分出色，其中输出过载为125%负载5分钟，输出过载为150%负载为1分钟，这样设计使得UPS减少了输出转旁路次数，使得UPS运行更加可靠，保障了UPS设备供电质量。5kA防雷设计，可以有效降低雷击失效率。90%以上涉及电脑网络及通讯系统，而且基本上都有UPS电源。而华为UPS电源按照5kA防雷设计能够归避来自雷击引起的90%失效,可靠地保护后端设备的交流输入端口，确保产品应用的高可靠性。

　　高效易用节能环保

　　华为UPS2000-G-10KRTS产品经过内部系统结构优化，工作在在线模式下，低负载运行电源转换效率最高达95%，电源输出功率因素高达99%，大大的减少了电能损耗。华为UPS2000-G-10KRTS拥有智能电池管理技术，相比与同类产品可以延长电池寿命50%以上。此外，该机还支持智能温度补偿及电池休眠功能，避免电池过充或欠充及防止电池自放电发生。此外，当有电池故障时，用户取出故障电池后，剩余电池会继续为系统备电，降低产品故障为用户使用带来困扰。

　　机身方面，该机配备了LCD屏实时显示系统状态，并支持英文、简体中文、法语、西班牙语、法语等多种语言，满足不同国家和地区的使用需求。

　　一体化监控系统，在线远程升级以及故障记录黑匣子，都为华为UPS2000-G-10KRTS产品稳定运行，万无一失提供了最终保障。

　　在UPS领域，针对提供整体解决方案，对于厂商而言有了更高的要求。厂商需要在供电、节能、管理软件等方面都具有一定的综合能力，特别在软件上，简化与可靠成为了UPS产品发展的一大特点。 软硬一体化整体趋势的确在影响着UPS方案的创新，原因就在于用户需求正快速地向更为简化的方案需求转移，在数据中心和服务器机房的用户端，IT设备和电源、制冷等基础设施采购的决策思路也正在同步趋向统一， PS2000-G-10KRTS很好地顺应了这一市场需求

华为通信电源,华为电源官网,华为高频开关电源,华为-48v开关电源,华为开关电源模块,华为网络机柜,华为服务器机柜,华为室外一体化机柜,华为OLT电源,华为直流电源,华为开关电源,华为综合柜,华为UPS,UPS5000-E,UPS2000-A,UPS2000-G,UPS8000-D,UPS5000-A,华为TP48200,华为TP48300,华为TP48600

Excellent performance, flexible HUAWEI UPS2000-G-10KRTL technical parameters

With the development of electronic technology and information technology, computer, multimedia, Internet and other information applications are rapidly infiltrating into all fields of society. With the development of network technology and application, the distributed information development model has been established. Information itself is the product of the highest value-added. In order to ensure information security and the normal operation of computer systems, its requirements for power quality are more stringent.

The sudden power failure not only caused the loss of intelligent equipment, but also led to the loss of important data. But the traditional UPS based on analog circuit control can not meet the demand of intellectualization. It is the general trend to introduce microcomputer digital control technology. The development of UPS will enter the era of full digital, the traditional analog control UPS will soon enter the history, and will be replaced by a beautiful appearance, safe and reliable, light and short microcomputer digital control intelligent UPS.

As a new product of light and compact UPS products, HUAWEI UPS2000-G series uninterruptible power supply products. Huawei series of UPS, mainly for small and medium-sized data center rooms and enterprises and institutions, is a very limited joint venture, space-efficient procurement and use of small and medium-sized institutions.

Huawei UPS2000-G-10KRTS is the core model of this series of products, the capacity of 10kVA/9kW, using single-phase input single-phase output / three-phase input single-phase output input input input input input input input input input single-phase output input mode, high efficiency, high density, high reliability and other characteristics become its core advantages. Overall, the product is reliable, efficient, easy to use, intelligent and other characteristics, is the telecommunications system, file servers, enterprise servers, central servers, microcomputers, hubs, data centers and other requirements of high-quality power protection equipment ideal power supply guarantee.

Adapting to changeable application scenarios

Easy-to-manage, easy-to-maintain integrated monitoring and real-time display system operation status, smart battery management effectively improve battery life by 50%, specifically, battery savings can be flexibly adjusted, Huawei UPS2000-G-10KRTS model to support 16-20 batteries, while the same series of 15/20kVA support 32-40 batteries adjustable, in case of failure, the remaining batteries. The battery can continue to prepare electricity for the system.

Battery intelligent charge and discharge management and intelligent dormancy, automatic floating charge conversion, to achieve temperature compensation, better grid conditions can make the battery dormancy, battery charging status, timely warning to prevent the occurrence of thermal runaway.

Huawei UPS2000-G-10KRTS can also be based on the vulnerable device failure warning, eliminating the risk of power failure, after the accident maintenance in advance, such early warning function for different use scenarios to avoid more serious failures in time, is commendable.

Long time, reliable, safe and stable

Huawei UPS2000-G-10KRTS, with high grid adaptability, can effectively prolong battery life, and this depends on Huawei UPS2000-G-10KRTS has a wide voltage frequency input, its input voltage range is 80v-280v, the input frequency range is 40Hz-70Hz, with good oil machine adaptability, such a design can ensure the production of this product. The product can be applied to the wide voltage output range of the extreme power grid. It solves the problem of jumping battery caused by the voltage frequency jump of the power grid and the unstable frequency when the generator is connected to the power grid.

HUAWEI UPS2000-G-10KRTS has strong load adaptability and can ensure the quality of power supply. Huawei UPS2000-G-10KRTS has excellent overload capability, in which the output overload is 125% load for 5 minutes and the output overload is 150% load for 1 minute. This design reduces the number of output bypass, makes the UPS run more reliable, and ensures the quality of UPS equipment power supply. 5kA lightning protection design can effectively reduce the failure rate of lightning stroke. More than 90% involve computer network and communication system, and basically have UPS power supply. According to the 5kA lightning protection design, Huawei UPS power supply can avoid 90% failure caused by lightning strike, reliably protect the AC input port of the back-end equipment, and ensure the high reliability of product application.

Efficient, easy to use, energy saving and environmental protection

Huawei UPS2000-G-10KRTS products through internal system structure optimization, working in online mode, low load operation power conversion efficiency up to 95%, power output factor as high as 99%, greatly reducing power loss. Huawei UPS2000-G-10KRTS has smart battery management technology, compared with similar products can extend battery life by more than 50%. In addition, the machine also supports intelligent temperature compensation and battery dormancy function to avoid battery overcharge or undercharge and prevent battery self-discharge. In addition, when there is a battery failure, after the user takes out the fault battery, the remaining battery will continue to reserve power for the system, reducing the product failure for users to use trouble.

In terms of fuselage, the machine is equipped with LCD screen real-time display system status, and support English, Simplified Chinese, French, Spanish, French and other languages, to meet the needs of different countries and regions.

Integrated monitoring system, online remote upgrade and fault record black box all provide the ultimate guarantee for the stable operation of Huawei UPS2000-G-10KRTS products.

In the field of UPS, aiming at providing the overall solution, it has higher requirements for manufacturers. Manufacturers need to have some comprehensive capabilities in power supply, energy saving, management software and so on. Especially in software, simplification and reliability have become a major feature of UPS product development. The overall trend towards integration of hardware and software does affect the innovation of UPS solutions, because user needs are rapidly shifting to simpler solutions, in data centers and kimonos.
